Micro3D L530V Five-axis femtosecond laser machining center

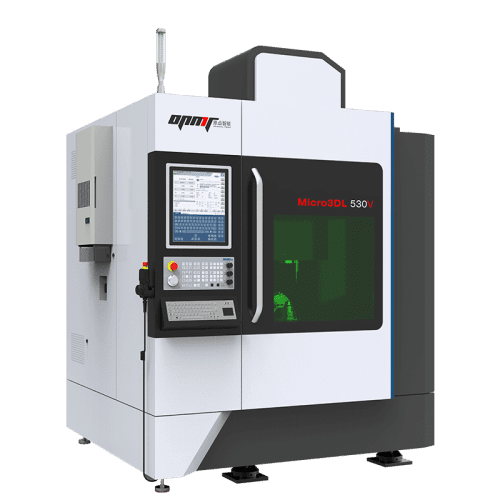

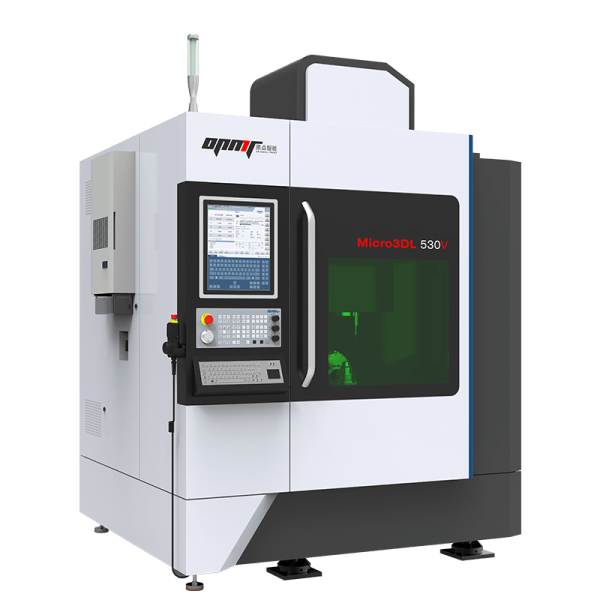

Micro3D L530V five-axis femtosecond laser machining center delivers unparalleled precision for 3D complex structures. With ≤±10μm accuracy and <1μm material removal, it excels in automotive and 3C electronics applications. This innovative system combines self-developed software with 40W infrared femtosecond laser technology, revolutionizing micro-nano processing and fine mold texturing.

Welcome to OPMT Laser

Micro3D L530V Five-axis femtosecond laser machining center

Micro3D L530V five-axis femtosecond laser machining center delivers unparalleled precision for 3D complex structures. With ≤±10μm accuracy and <1μm material removal, it excels in automotive and 3C electronics applications. This innovative system combines self-developed software with 40W infrared femtosecond laser technology, revolutionizing micro-nano processing and fine mold texturing.

Microstructure Precision Engraving Expert

Specializing in laser engraving of three-dimensional complex structures, including microstructures on freeform surfaces, surface micro-nano processing, fine mold textures, and surface textures and cutting of hard metal indexable inserts, ensuring that every detail reaches the pinnacle of precision.

User-friendly CNC System

Equipped with self-developed processing software, it seamlessly connects with the NUM system, can customize processing planning and generate processing paths, intelligently generate splicing and linkage processing, and 3D model 3D simulation provides users with a more convenient operating experience.

Ultra-precision Processing Capability

Utilizing 40W infrared femtosecond laser technology, it achieves a stable processing accuracy of ≤±10μm, with the minimum single-layer material removal thickness <1μm, demonstrating outstanding fine processing capabilities.

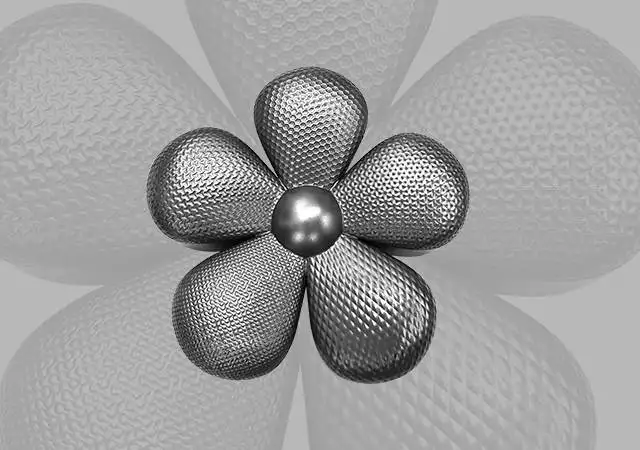

Sample Applications

Features

Widely used in a variety of materials

The Micro 3D L530V five-axis femtosecond laser machining center widely used in the

machining of parts made from ultra-hard materials, hard metals, ultra-hard coatings,

ceramic materials, CBN, PCD, diamonds, and more.

Combined with specialized machining software, it can handle various chip-breaker grooves,

helical slots, slot shapes for hard metal inserts, and complex contours and surfaces, as

well as blunting the edges of tools made from ultra-hard materials. It can also be used for

creating laser-induced periodic surface structures (LIPSS).

Configured with a ≥ 30W power infrared femtosecond laser

Based on an all-fiber femtosecond laser architecture, with a pulse width ≤ 400fs and a repetition frequency ≥ 1MHz. Modular design, optional green laser, achieve the best precision and highest production efficiency for different material applications, adapting to industrial 7×24 production needs.

High-resolution positioning camera with no less than 20 million pixels

Supports adjustment of resolution and pixels through software settings.

High-precision 3D scanning and focusing system

Imported fused quartz telecentric F-theta Lens: high transmittance and low absorption, high uniformity within a large area, achieving a smaller focusing spot

High-precision 3D galvanometer: ensures high repeatability and long-term stability, fast response speed and high efficiency

MP250 machine tool probe system

Quickly realize the calibration of the machine tool rotation center and the precise positioning and processing of various parts

Fast dynamic response and high positioning accuracy

X/Y/Z - axis: Adopt linear motor, B/C - axis: Adopt torque motor

The position detection and feedback resolution is ≤ 0.01μm

Both the linear axis and the rotary axis adopt closed-loop control for fast dynamic response.

Specifications

Travel Unit Micro 3D L530V
X-axis mm 300
Y-axis mm 300
Z-axis mm 260
B-axis ° ±120
C-axis ° 360
Accuracy
X/Y/Z-axis positioning accuracy mm 0.003
X/Y/Z-axis repeat positioning accuracy mm 0.002
B/C-axis positioning accuracy 5
B/C-axis repeat positioning accuracy 3
Machine dimensions
Floor space (L x Wx H) mm 2680 x 2020 x 2600
Weight kg 6000
