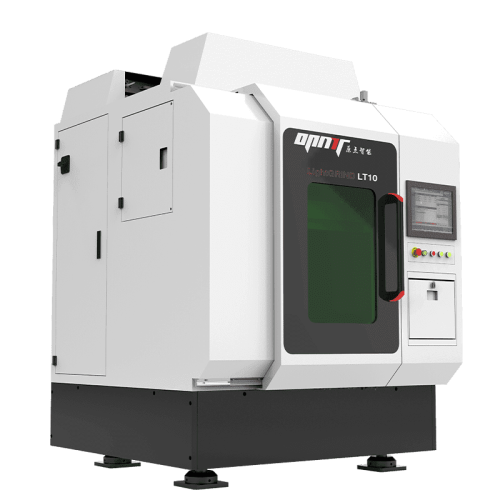

LightGRIND LT10 Single-laser Grinding Machine

LightGRIND LT10 Single-laser Grinding Machine revolutionizes precision manufacturing with its advanced CNC system and self-developed CAM software. Featuring automatic loading, online defect detection, and a high-precision water-cooled turntable, it reduces processing time by 40% while achieving mirror finishes. This compact powerhouse delivers unparalleled accuracy and efficiency for automotive and 3C electronics industries.

Welcome to OPMT Laser

LightGRIND LT10 Single-laser Grinding Machine

LightGRIND LT10 Single-laser Grinding Machine revolutionizes precision manufacturing with its advanced CNC system and self-developed CAM software. Featuring automatic loading, online defect detection, and a high-precision water-cooled turntable, it reduces processing time by 40% while achieving mirror finishes. This compact powerhouse delivers unparalleled accuracy and efficiency for automotive and 3C electronics industries.

Efficient laser grinding technology

One-time clamping, rough and fine processing integrated, optimized process shortens processing time by 40%, and can be polished to a mirror finish in 5 hours.

Reliable system

Num CNC system and self-developed CAM software are highly controllable, easy to operate, stable and reliable.

Innovative mechanical design

It is designed with an automatic loading and unloading device, with online detection to automatically distinguish finished products from defective products. The high-precision water-cooled turntable fixture has its own water-cooling system, which significantly reduces the processing temperature to meet the needs of 7*24 processing.

Sample Applications

Features

Customized fixture

Quick clamping and automatic transformation.

Long-term stability

Integrally cast base ensure high rigidity, high accuracy and high stability.

Single piece machining for the consistency of finished products

The average machining time of a single piece is about 5 minutes, and one piece can be installed at a time (the efficiency is subject to the actual test result due to differences in material properties and dimensions).

Realize thinning and finish machining PCD tool blade

As for the finished product accuracy, the height difference at the front surface is 0.005, ensuring a convexity of 0.005 in the middle, as well as deformation in subsequent grinding.

Specifications

Turntable parameters Unit LightGRIND LT10
Turntable diameter mm φ118
Allowable load capacity kg 20
Laser type
Fiber laser W 500
X-axis parameters
Travel mm 540
Positioning accuracy mm 0.01
Repeat positioning accuracy mm 0.01
Z-axis parameters
Travel mm 200
Positioning accuracy mm 0.01
Repeat positioning accuracy mm 0.01
Machine dimensions
Floor space (L x W x H) mm 1300 x 1370 x 2650
Weight t 2.8
