Máquinas de diamante cultivado en laboratorio vs. métodos tradicionales: comparación de costo, eficiencia y sostenibilidad

The manufacturing of precision tools and components using ultrahard materials has undergone significant transformation with the advent of laser processing technology. This comparative analysis examines the substantial differences between modern laser-based diamond processing systems and conventional methods, providing decision-makers with comprehensive data to guide equipment investments.

The Rise of Lab-Grown Diamonds in Industrial Applications

Lab-grown diamond materials, including Polycrystalline Diamond (PCD), Cubic Boron Nitride (CBN), and Chemical Vapor Deposition (CVD) diamond, have emerged as critical components across multiple industrial sectors due to their exceptional hardness, wear resistance, and thermal conductivity properties.

In the 3C (Computer, Communication, Consumer Electronics) industry, PCD, PCB, and CVD tools are primarily utilized for finishing operations on light, short, and small product shells and internal precision components such as mobile phones, tablet computers, and electronic watches. The precision requirements for these applications demand tooling materials capable of maintaining edge quality while processing complex contours.

Similarly, the automotive sector extensively employs PCD, CBN, carbide, and ceramic materials for finishing key components in engines, gearboxes, and brake systems. These materials significantly improve workpiece efficiency and accuracy while ensuring surface quality standards are maintained.

The superhard material market continues to expand as manufacturing tolerances become increasingly stringent. Traditional processing methods often struggle to efficiently shape these ultrahard materials, creating substantial market opportunity for advanced processing technologies.

Cost Breakdown: Laser vs. EDM/Mechanical Grinding

Direct cost comparison between conventional Electrical Discharge Machining (EDM) and laser-based processing reveals significant operational advantages for laser systems:

Operational Expense Comparison:

Processing efficiency presents an equally compelling case for laser technology. In a documented example processing a trapezoidal flat tooth saw blade (diameter 500mm with 120 teeth), EDM required 24 hours while the laser CNC machine completed the same task in only 8 hours. This represents a 3x improvement in production throughput.

OPMT’s advanced laser systems consistently demonstrate processing speeds 200% faster than EDM with 50% lower costs per unit. This efficiency gain is particularly valuable when processing PCD tools, as laser finishing can achieve rates up to 3.0 mm/min with exceptional edge quality.

Environmental Impact Analysis

The environmental advantages of laser-based diamond processing are substantial when compared to traditional methods:

Environmental Factor Comparison:

Traditional chemical texturing methods produce side etching and edge effects, resulting in poor 3D effects and rough textures. These processes typically involve harsh chemicals that require specialized disposal protocols and create workplace hazards.

In contrast, OPMT’s laser systems utilize advanced dust-pelletizing systems that capture particulate matter without chemical waste generation. This elimination of chemical consumables not only reduces environmental impact but also simplifies regulatory compliance and workplace safety protocols.

The precision of laser processing (consistent accuracy of 0.003mm) further reduces material waste through lower rejection rates and optimized material usage. This precision is particularly valuable when processing expensive diamond materials.

Technical Superiority of CNC Laser Systems

OPMT’s advanced laser machining systems deliver multiple technical advantages over conventional diamond processing methods:

Superior Edge Quality: Unlike EDM processes that can produce chips and cracks at cutting edges (increasing costs and extending processing time), laser technology creates perfect cutting edges without compromised structural integrity.

Processing Non-Conductive Materials: Laser systems can effectively process poor conductivity materials like large-particle polycrystalline diamond that cause “wire skipping” issues with EDM technology.

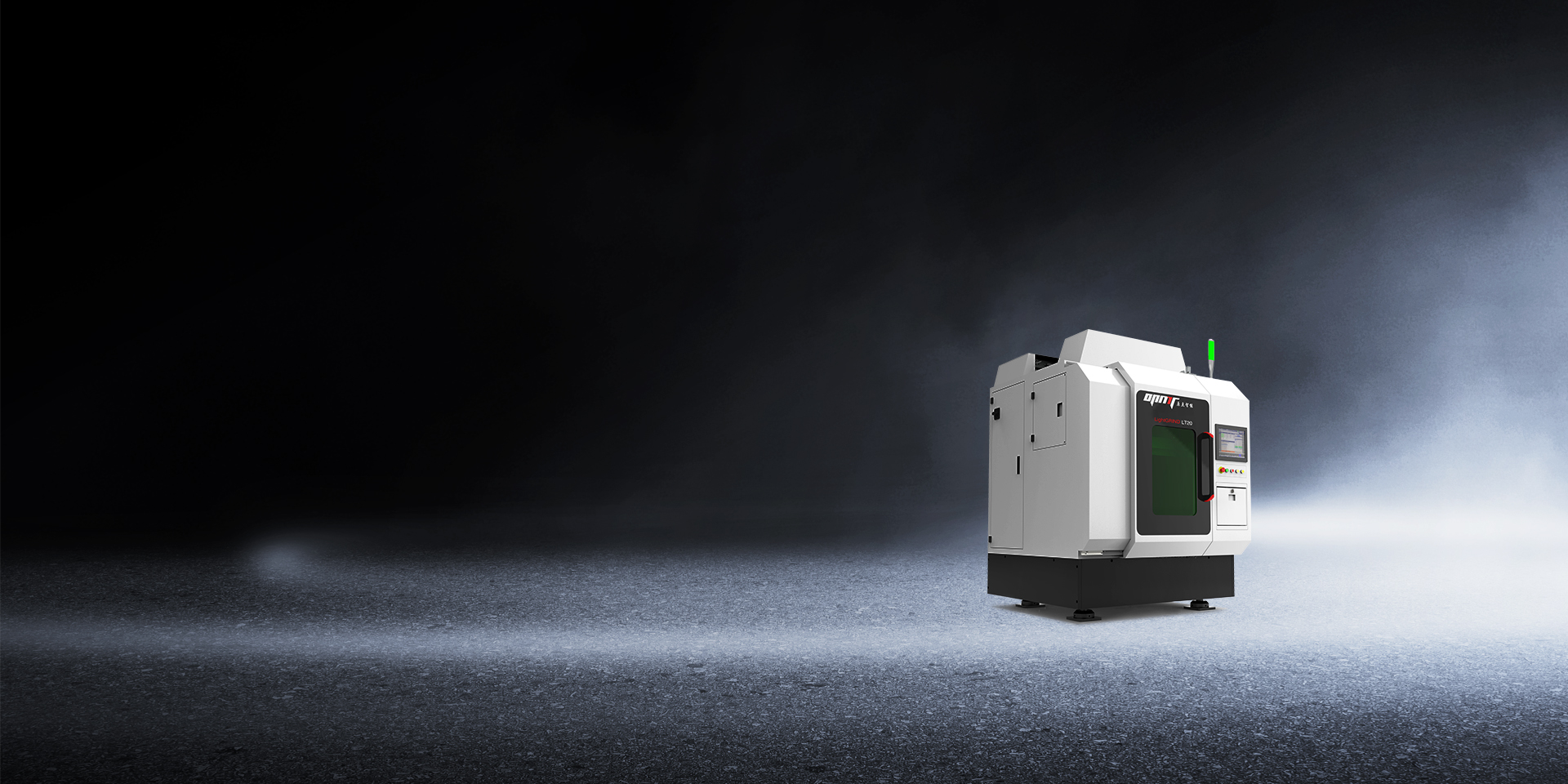

OPMT LightGRIND LT20 Dual-Laser Configuration:

• Rapid machining capability with dual-laser configuration
• Customized fixtures allowing for quick clamping
• Marble machine bed ensuring high rigidity, accuracy and stability
• Capacity to clamp up to 22 pieces simultaneously
• Removal rate of 0.3-0.5μm with no auxiliary grinding material loss

The integration of advanced NUM CNC control systems enables maximum operational ease and process reliability. These open universal CNC systems support up to 32 axes/spindles per NCK (Numerical Control Kernel) and are fully compatible with RTCP (Rotational Tool Center Point) technology.

OPMT’s proprietary GTR cutting tools software provides an accessible transition from EDM to laser machining through:

• Industry-standard programming solutions allowing importation of existing EDM projects
• Minimal training requirements
• Parameterized software for both rotary and fixed tools
• Automatic 3D measurement of PCD surfaces
• Automatic program generation with direct machine simulation

Buyer’s Guide: Choosing the Right Machine for Your Needs

When selecting an optimal diamond processing system, consider these critical specifications based on application requirements:

For 3C Industry Applications (Light 5X 40V):

• Working envelope: X-400mm, Y-250mm, Z-300mm
• Workpiece capacity: 100mm diameter (200mm for special shapes)
• Positioning accuracy: 0.005mm (XYZ axes)
• Repeat positioning accuracy: 0.003mm (XYZ axes)
• Maximum tool weight: 8kg

For Automotive Applications (Light 5X 60V):

• Working envelope: X-600mm, Y-250mm, Z-300mm
• Workpiece capacity: 200mm diameter
• Maximum tool length: 350mm
• Maximum tool weight: 25kg
• Load capacity: 300kg (horizontal workbench)

For High-Volume Diamond Grinding (LightGRIND LT20):

• Turntable diameter: 400mm
• Maximum load capacity: 100kg
• Simultaneous processing of up to 22 pieces
• XZ positioning accuracy: 0.02mm
• Ideal for superhard materials including diamond and CBN

For CVD Diamond Surface Processing (DiaCUT L315V):

• Specifically designed for CVD diamond machining
• Wavelength: 532nm
• Positioning accuracy: 0.01mm
• Repeat positioning accuracy: 0.002mm

When evaluating systems, prioritize machines with:

1. RTCP 5-axis linkage capabilities for complex contour processing
2. Closed-loop grating scale detection for highest positioning accuracy
3. CCD positioning camera and high-precision probe for measurement
4. Modular design allowing configuration flexibility
5. Compatibility with advanced CAD/CAM software

Conclusión

The comparison between laser-based diamond processing and traditional methods clearly demonstrates the significant advantages of advanced laser technology in terms of cost efficiency, environmental sustainability, and technical capability. OPMT’s comprehensive range of laser machining solutions provides manufacturers with reliable, high-precision alternatives to conventional processing methods across multiple applications and industries.

As manufacturing requirements continue to advance in precision and complexity, laser-based diamond processing systems represent not only a technological upgrade but a strategic investment in production capability, efficiency, and environmental responsibility.

Descargo de responsabilidad
Este contenido es compilado por OPMT Laser con base en información pública disponible únicamente como referencia; las menciones de marcas y productos de terceros son para comparación objetiva y no implican ninguna asociación o respaldo comercial.
